First, product overview

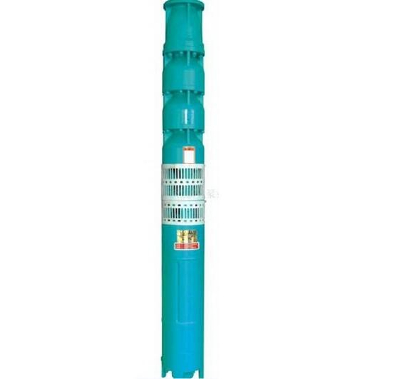

The submersible electric pump is a well pump, which is composed of a YQS type submersible motor and a QJ type submersible pump. Its main feature is the motor and pump together into the water to work without pumping station building, which has the advantages of simple structure, convenient operation and maintenance, high efficiency, safe and reliable operation.

Two, product uses

It is suitable for the extraction of ground water from deep wells, it is widely used in urban, industrial and mining enterprises, cooling systems, water supply and drainage and agricultural irrigation.

Three, the use of conditions

1, power supply: three-phase alternating current 380V (tolerance) 50), 5% Hz (tolerance) 1%).

2, water quality: (1) the water temperature is not higher than 20;

(2) the content of solid impurities (quality) is not greater than 0.0.%;

(3) pH (PH) 6.5-8.5;

(4) the content of hydrogen sulfide is not more than 1.5mg/L;

(5) the content of chloride ion is not more than 400mg/L;

3, submersible motor lumen must be filled with clean water.

4, submersible electric pump must be completely submerged in the water, the depth is not more than 70m, the bottom of the bottom of the submersible pump is not less than 3m.

Water gushing amount 5, wells should be able to meet the amount of water submersible pump and continuous operation, the amount of water submersible pump should be controlled at 0.7-1.2 times the rated flow.

6, I Masano, submersible electric pump can not be used, can only be used vertically.

7, submersible electric pump must be required to match the requirements of the cable, and outside with overload protection configuration.

Four, model description
